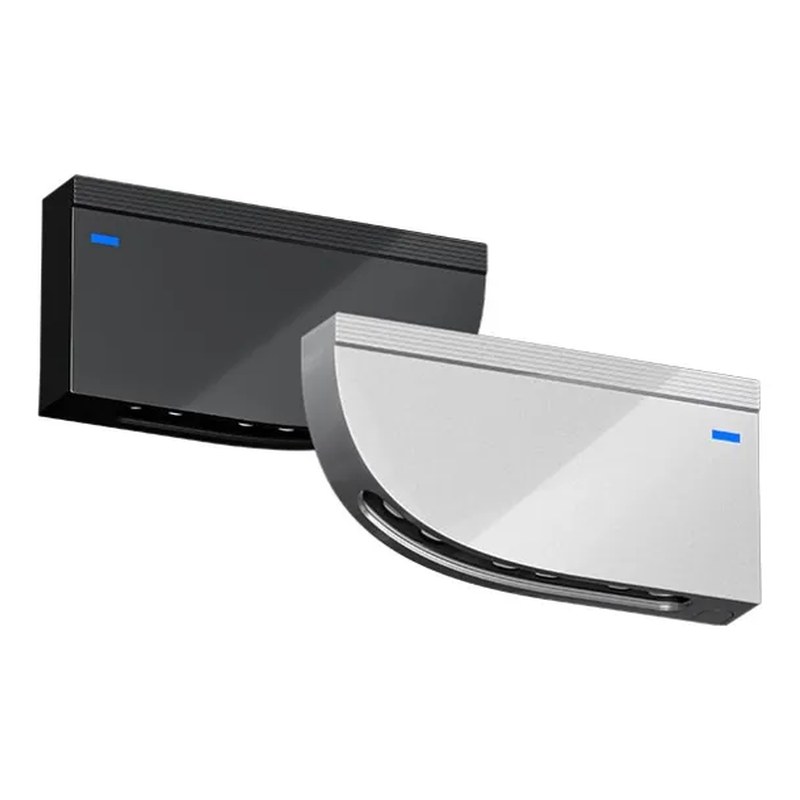

M-903 Laser Safety Curtain Sensor
This series presence safety sensor can detect the presence of human body, to provide liable and accurate scanning signal to other control device(automatic door, revolving door, electric door etc). In the places like hotel, office building, government that need to protect the pedestrian security, infrared safety sensors are the best choice.
Specifications
- Detection principle
- Time of Flight (TOF)
- Light medium
- 890nm infrared laser
- Laser category
- Class I eye-safe laser
- Detection response time
- ≤50ms
- Detection area diameter
- Each 100mm light spot(installation height=2.8m)
- Detection angle
- 5°~10° adjustable
- Detection range
- Minimum 30cm away from the ground
- Maximum installation height
- 3500mm
- Working temperature
- -20°C~60°C
- Working voltage
- AC/DC 12-30V
- Working current
- Standby 100mA, action135mA
- Signal output
- Relay NO or NC
- Trigger methods
- Moving or stationary
- Function instruction
- LED indicator, standby BLUE, detection RED
- Dimension
- 153x77x26.2 mm
M-903 Laser Safety Curtain Sensor
Accurate detection
Adopt Time of Flight (TOF) technology, accurately detect the presence of the objects or human body, which as the function of safety presence, anti-collision and safety detection.
6-beam, fully coverage protection
6 laser beams, detecting range covers the entire door leaf, ensuring precise protection for personnel at any position.
Stable, anti-interference
Use the "precise and fast" features of the laser, with the Intelligent Speed Adaptation System(ISAS), to ensure long-term stable opearation and reliable security protection.
Simple wiring, clean installation
Compact and delicate appearance. After the main and secondary machine are connected, only one of them needs to be connected with the door opener.
User-friendly debugging
Scanning range in all 7 levels, push once, one buzzer voice, scanning range will increase or decrease by 5cm. When buzzer sounds 2 times, the adjustment has reached the limit range.
Function switching
Switching the safety presence and anti-collision functions by DIP switch 1 to achieve, easy to operate.
Angle adjustment
Installation angle is adjustable from 5° to 10°.Turn the knob clockwise, the angle becomes smaller, turn the knob counterclockwise, the angle becomes larger.
Accurate detection
Adopt Time of Flight (TOF) technology, accurately detect the presence of the objects or human body, which as the function of safety presence, anti-collision and safety detection.
6-beam, fully coverage protection
6 laser beams, detecting range covers the entire door leaf, ensuring precise protection for personnel at any position.
Stable, anti-interference
Use the "precise and fast" features of the laser, with the Intelligent Speed Adaptation System(ISAS), to ensure long-term stable opearation and reliable security protection.
Simple wiring, clean installation
Compact and delicate appearance. After the main and secondary machine are connected, only one of them needs to be connected with the door opener.
User-friendly debugging
Scanning range in all 7 levels, push once, one buzzer voice, scanning range will increase or decrease by 5cm. When buzzer sounds 2 times, the adjustment has reached the limit range.
Function switching
Switching the safety presence and anti-collision functions by DIP switch 1 to achieve, easy to operate.
Angle adjustment
Installation angle is adjustable from 5° to 10°.Turn the knob clockwise, the angle becomes smaller, turn the knob counterclockwise, the angle becomes larger.
Technical parameters
Detection principle: | Time of Flight (TOF) |
Light medium: | 890nm infrared laser |
Laser category: | Class I eye-safe laser |
Detection response time: | ≤50ms |
Detection area diameter: | Each 100mm light spot(installation height=2.8m) |
Detection angle: | 5°~10° adjustable |
Detection range: | Minimum 30cm away from the ground |
Maximum installation height: | 3500mm |
Working temperature: | -20°C~60°C |
Working voltage: | AC/DC 12-30V |
Working current: | Standby 100mA, action135mA |
Signal output: | Relay NO or NC |
Trigger methods: | Moving or stationary |
Function instruction: | LED indicator, standby BLUE, detection RED |
Dimension: | 153x77x26.2 mm |
