Safety Sensor

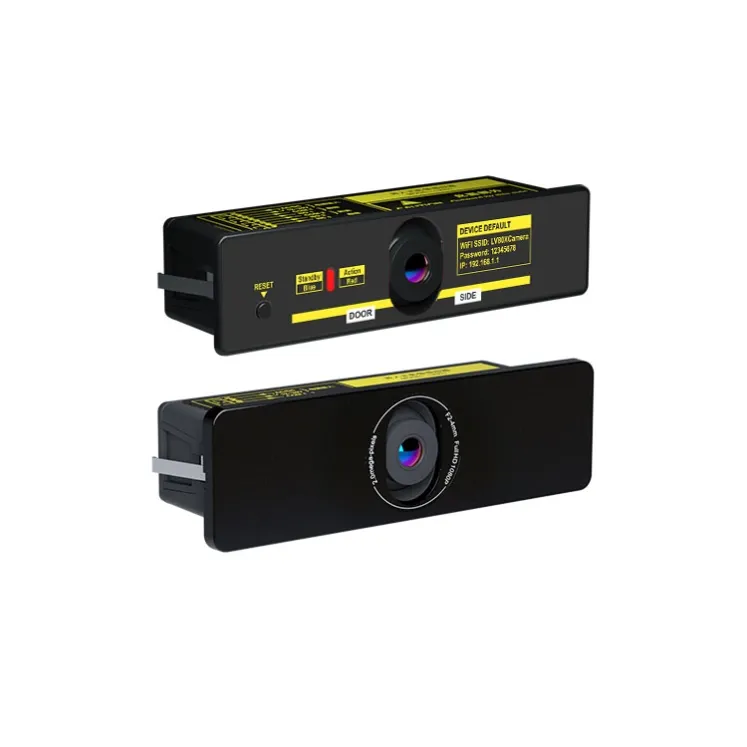

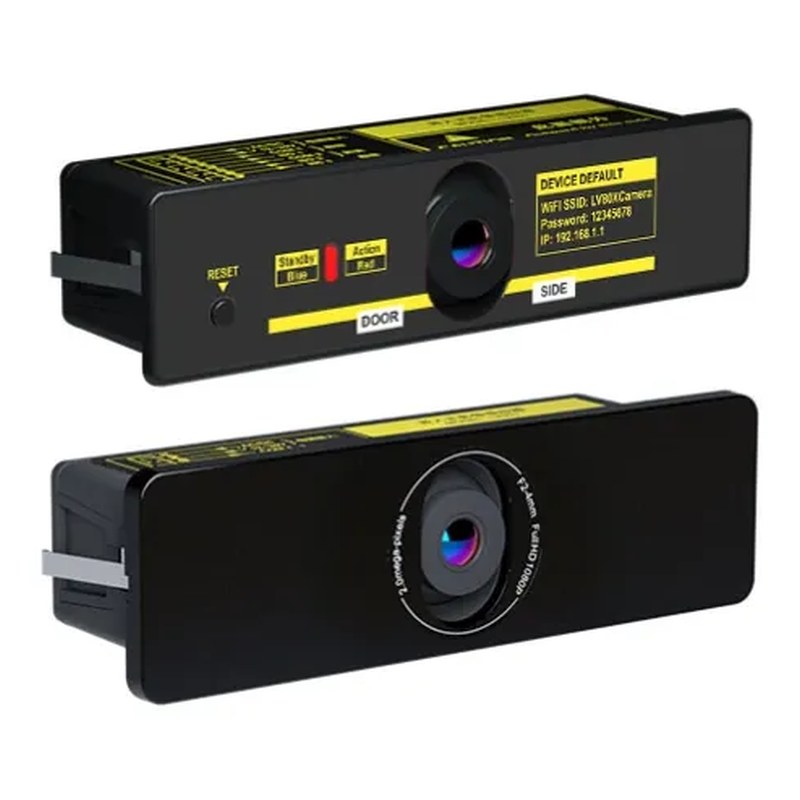

LV802/803 EMBEDDED HUMAN FIGURE RECOGNITION SENSOR
AI human figure intelligent detection, suitable for variety automatic door as the function of activate sensing and safety detecting. Compact appearance, as well as to the narrow installing environment.
Specifications
- Detection function
- human figure activated, safety
- Camera pixel
- HD 1080P
- Response speed
- 100ms
- View angle adjustment
- ±20°
- Power supply
- AC/DC 12-30V
- Current
- Standby 160mA, action 200mA
- Working temperature
- -20°C~60°C
- Working humidity
- 10%~90%RH
- Installation height(max)
- 5 meters
- Dimension
- 157(L)x53(W)x34(H)mm
- Detection function
- human figure activated, safety
- Camera pixel
- HD 1080P
- Response speed
- 100ms
- View angle adjustment
- ±20°
- Power supply
- AC/DC 12-30V
- Current
- Standby 160mA, action 200mA
- Working temperature
- -20°C~60°C
- Working humidity
- 10%~90%RH
- Installation height(max)
- 5 meters
- Dimension
- 128(L)x38(W)x40(H)mm
Human Figure Recognition Sensor
AI human figure intelligent detection
Only detecting the human figure in the sensing area, and don't output signals for other stationary or moving objects.
Narrow design
LV803 Embedded Human Figure Recognition Sensor Compact and delicate appearance, narrow door frame can be fitted, suitable for a variety of occasions.
Ultra-high door detection
Using video stream image acquisition, the maximum installation height is 5 meters.
View angle
With single axis eagle eyes design, the elevation angle of camera ±20° can be adjusted.
Humanized adjustment
The sensor can build its own WLAN without downloading an APP or using a network. The sensing range and sensitivity can be adjusted through the mobile phone, which is simple and convenient.
Night vision function
Built-in infrared fill light bead, enhance the ability to recognize at night.
Technical parameters
LV802 Exposed Installation Human Figure Recognition Sensor
LV803 Embedded Human Figure Recognition Sensor
Human Figure Recognition Sensor
AI human figure intelligent detection
Only detecting the human figure in the sensing area, and don't output signals for other stationary or moving objects.
Narrow design
LV803 Embedded Human Figure Recognition Sensor
Compact and delicate appearance, narrow door frame can be fitted, suitable for a variety of occasions.
Ultra-high door detection
Using video stream image acquisition, the maximum installation height is 5 meters.
View angle
With single axis eagle eyes design, the elevation angle of camera ±20° can be adjusted.
Humanized adjustment
The sensor can build its own WLAN without downloading an APP or using a network. The sensing range and sensitivity can be adjusted through the mobile phone, which is simple and convenient.
Night vision function
Built-in infrared fill light bead, enhance the ability to recognize at night.
