Safety Sensor
ARW-618 BEAMS SENSOR
ARW-618 Beams sensor. Safety beam sensor is widely used in the automatic door safety presence auxiliary function.
Specifications
- Power supply
- AC/DC 12-30V (-/+10%)
- Connect output state
- ON/CN optional
- Output capacity
- 1A / DC 24V
- Receiving cable
- black, 5.5 meters
- Beam
- single/double beam
- Action current
- 58mA (DC 12V power)
- Static current
- 23mA (DC 12V power)

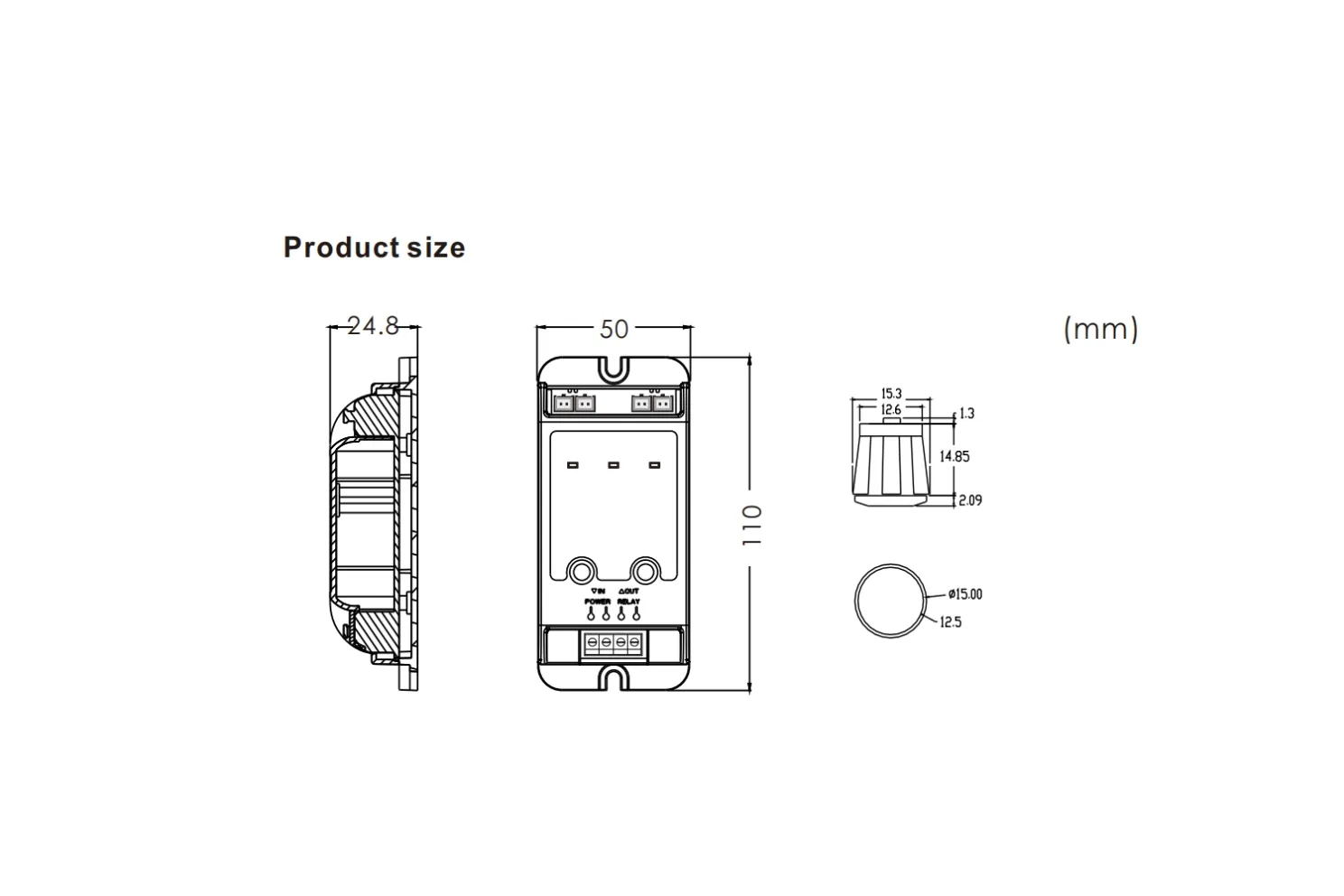

- Size of controller
- 110(L)x50(W)x24.8(H)mm
- Electric eye head
- 19(L)X13(D) mm
- Surface mounted bracket
- 28(L)x30(W)x18.5(H)mm
Beams Sensor
ARW-618 Safety beam sensor is widely used in the automatic door safety presence auxiliary function, can accurately detect the door opening signal provided by people or things to the automatic door, so as to avoid the hidden danger of automatic door safety.
218E/218D/218H light eye head to fix the light eye head on the edge of various door frames and decorative columns.
Overall characteristics
- Using color corresponding plug-in socket, simple wiring, convenient and accurate.
- Single-light beam and double-light beams optional, far and near distance, flexible selection.
- It is composed of a pair of transmitting and receiving light head and main controller, with long transmitting distance and flexible installation and wiring of light eye.
- Special high precision calculating mode, and by the sunshine filter factor, greatly improve the anti-interference performance of the system.
- It is equipped with alarm function of short connection fault of receiving head.
