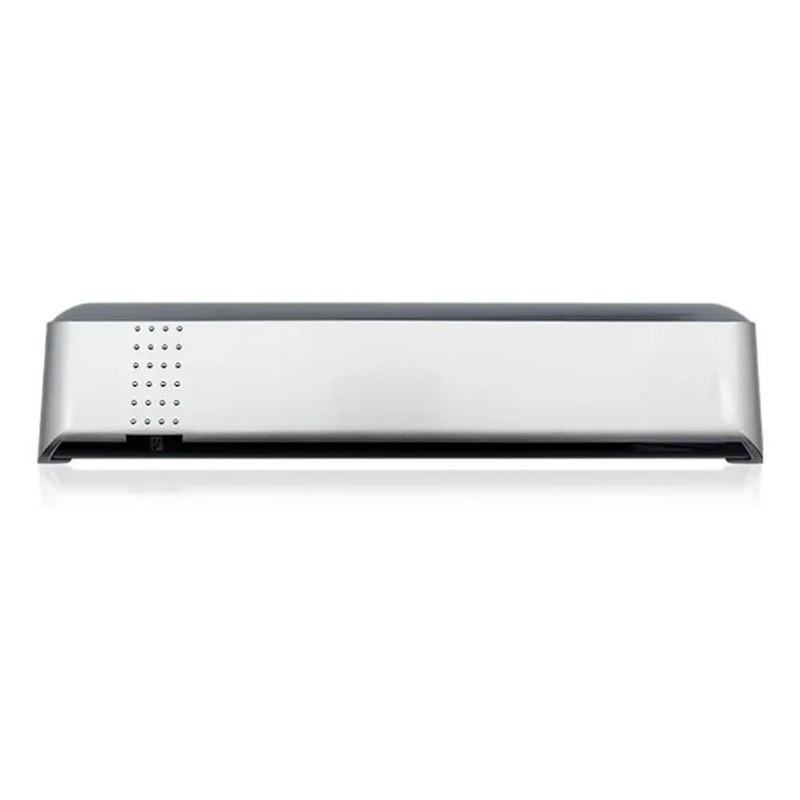

ARW-507/507E INFRARED MOTION & PRESENCE SENSOR
ARW-507/507E Infrared motion & presence sensor. The sensor integrates the functions of motion and safety presence for sliding door, folding door etc.
Specifications
- Input power
- AC/DC 12-30V (-/+10%)
- Cable length
- 2500mm
- Signal output
- Relay,1 for motion,1 for presence,(NO/NC optional)
- Max. installation height
- 3500mm
- Static current
- 25mA
- Action current
- 100mA
- External dimension
- 267.2mm(L) x 61.1mm(W) x 46mm(H)
- Shell material
- ABS
- Ray type
- Infrared modulated light
- Self-learning time
- Dynamic stability for 2 seconds
- Ray source
- Infrared 940NM
- Light beam
- 2 way activation, 2 way anti-clamp, 6 transmitting, 24 light spot
- Temperature range
- -40℃ to 60℃
- Max. detection area
- 2500(W) x 1600(D) mm
- Output hold time
- presence 0.5 seconds, motion 2 seconds
- Response time
- ≤100ms
- Background update time
- Four optional: 15S,1M,30M,∞
- Operation indicate
- Learning background: Green LED flashes;
- Standby state
- Green LED always on;
- Activation signal
- Yellow LED on;
Infrared Motion & Presence Sensor
INFRARED MOTION & PR ARW-507/507E The sensor integrates the functions of motion and safety presence for sliding door, folding door etc.
The activation and the presence detection function is also performed by infrared induction, can control the detection area effectly and accurately.
Infrared presence adopt background self-learning function.
It will learn background automatically when power on.
Suit all kinds of occasions.
Always self- correcting once be influenced by quake, distortion, move, dark and sunshine.
Ensure the sensor can work durable.
