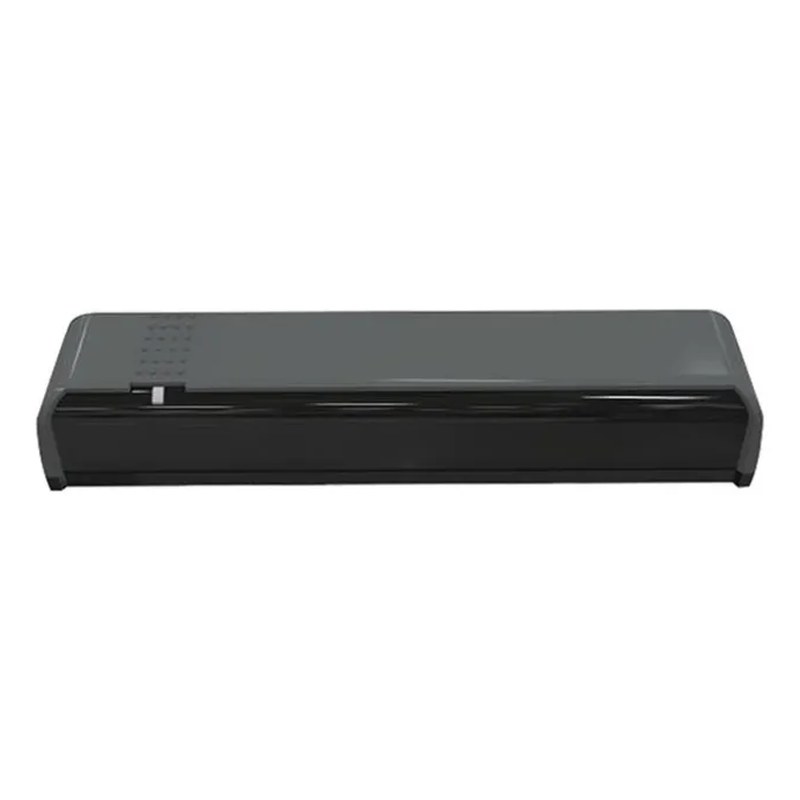

ARW-506/506E MICROWAVE MOTION & INFRAFRED PRESENCE SENSOR
ARW-506/506E Microwave motion & infrafred presence sensor. The sensor integrates the functions of motion and safety presence for sliding door.
Specifications
- Input power
- AC/DC 12-30V (-/+10%)
- Cable length
- 2500mm
- Protection level
- IP44
- Signal output
- Relay signal, one way motion, one way presence (ON/CN)
- Max. installation height
- 3500mm
- Static current
- 43mA
- Action current
- 115mA
- External dimension
- 267.2mm(L) x 61.1mm(W) x 46mm(H)
- Shell material
- ABS
- Ray type
- Infrared modulated light
- Self-learning time
- Dynamic stable 2s for self-learning
- Light beam
- Two-line transmission, 24 light spot
- Operation indicate
- Standby mode: Green LED;
- Temperature range
- -40℃ to 60℃
- Max. detection area
- 2500(W) x 600(D) mm
- Output hold time
- 0.5 seconds
- Response time
- ≤100ms
- Background update time
- Four optional: 15S,1M,30M,∞
- Technology
- Microwave & microwave processors
- Emission frequency
- 24.125GHz
- Emission power
- <20dbm EIRP
- Emission frequency density
- <5mW/cm2
- Detection mode
- motion
- Operation indicate
- microwave induction by blue LED
- Detection range
- 4m(W) x 2m(D) (Installation height=2.2m)
Microwave Motion & Infrafred Presence Sensor
MICROWAVE MOTION & I PRESENCE SENSOR ARW-506/506E The sensor integrates the functions of motion and safety presence for sliding door, folding door etc.
The activation function is performed by microwave technology, the presence detection is performed using an active infrared function.
The motion radar with one-way function can save power, and the three-dimensional safety light curtain will protect user from being hit, without to need the additional safety electric eyes.
Infrared presence adopt background self-learning function.
It will learn background automatically when power on.
Suit all kinds of occasions.
Always self- correcting once be influenced by quake, distortion, move, dark and sunshine.
Ensure the sensor can work durable.
(506)Microwave technology adopts 24.125GHz microwave sensor module imported from Germany, which is not affected by temperature, humidity and other environment
