Motion Sensor

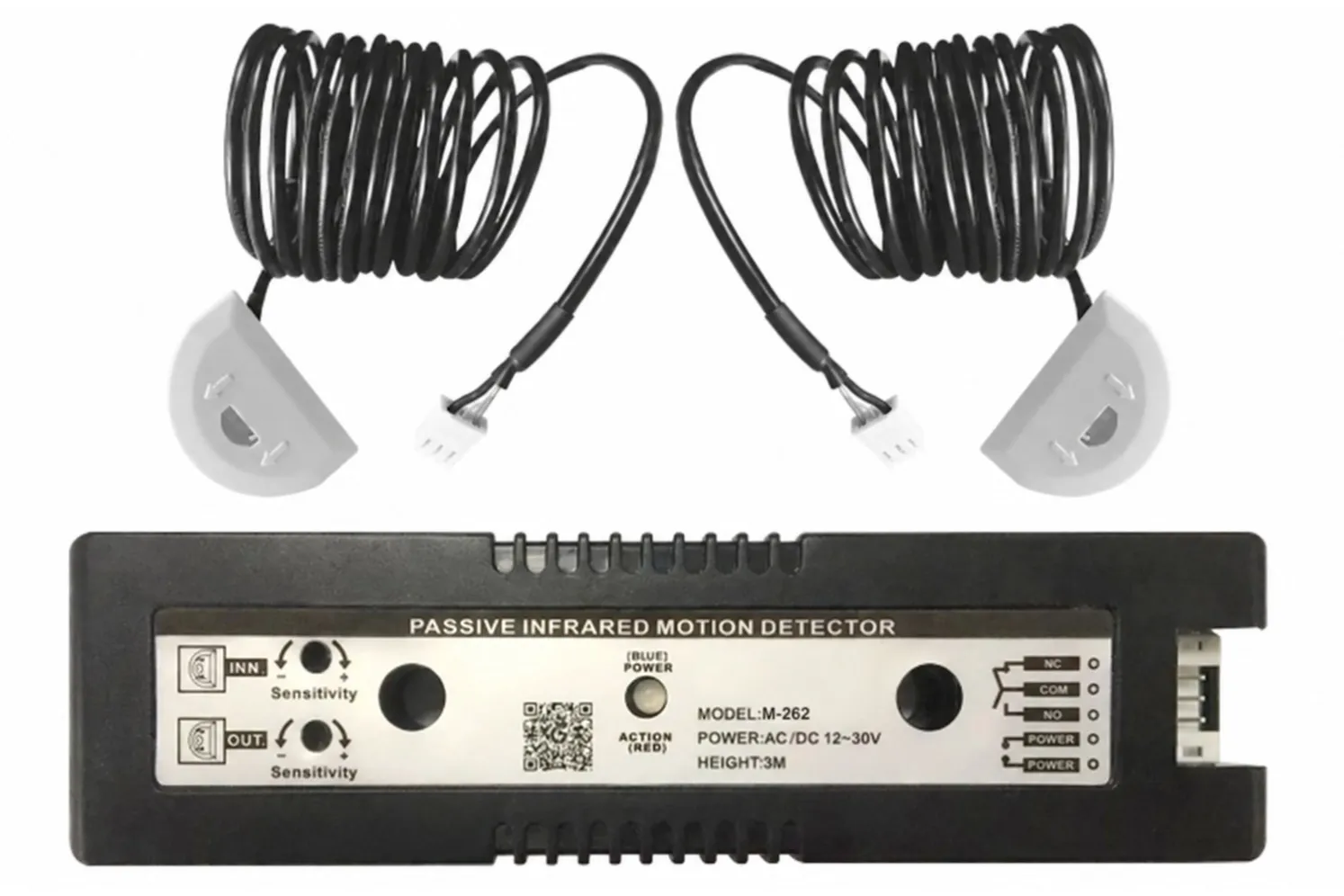

ARW-262 CONCEALED SMALL DETECTOR
ARW-262 Concealed small detector. Passive pyroelectric infrared sensor is used in small automatic door for activation function.
Specifications
- Working voltage
- AC/DC 12-30V
- Static current
- 7.8mA
- Action current
- 33mA (DC 12V power)
- Working temperature
- -40℃ to 60℃
- Max installation height
- 2.8 meters
- Min detection speed
- 0.1m/s
- Output holding time
- 1.3s
- Detection range
- 80-100mm (Depth) 2000mm(Wide)
- Hole size
- 13mm
- Cable length
- 2 meters
- External dimension
- 110 x 30 x 15 mm (Controller)
Concealed Small Detector
CONCEALED SMALL D ARW-262 Passive pyroelectric infrared sensor is used in small automatic door for activation function, like concealed mounting in the ceiling.
Overall characteristics
- Split design, flexible in stallation.
- The detection sensor by concealed mounted, clean and pretty.
- Adopt full set imported passive detect part from Demand, strong anti-interference, and high sensitivety.
- With signal terminal NC/NO output, convenient to connect with all kinds of automatic door.
