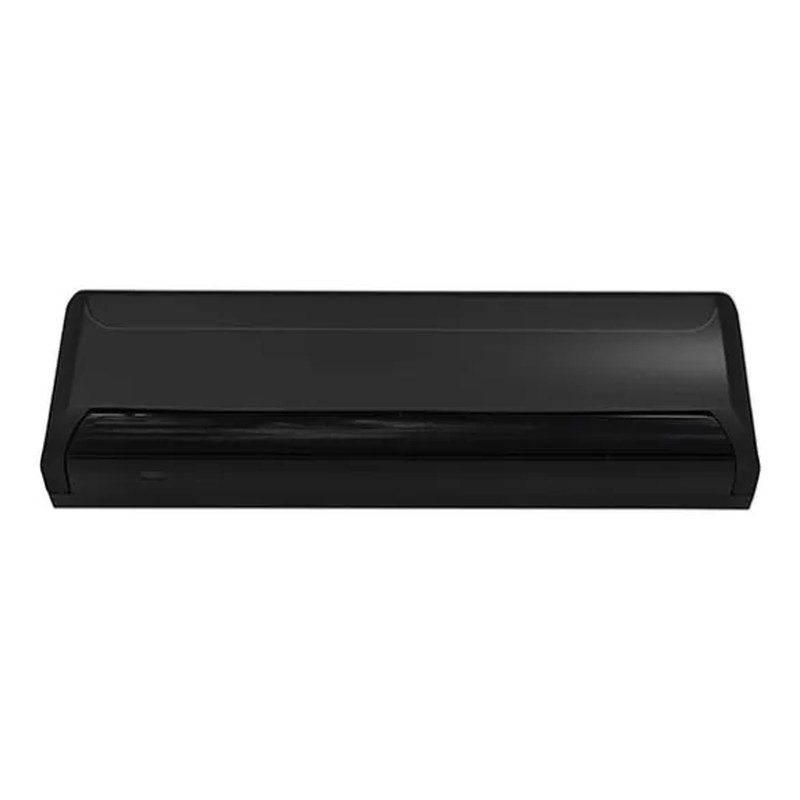

ARW-254 MOTION & PRESENCE INFRARED SENSOR
ARW-254 Motion & presence infrared sensor. This sensor is integrated with activation and safety presence.
Specifications
- Power input
- AC/DC 12-24V (±10%)
- Cable length
- 2.5 meters
- Signal output
- Relay, 1 way presence, 1 way motion
- Max. install height
- 2600 mm
- Standby current
- 30mA(DC 12V power)
- Action current
- 110mA(DC 12V power)
- External dimension
- 229(L)x67(W)x41(H)mm
- Shell material
- ABS
- Ray type
- Infrared modulated ray
- Light source
- Infrared 940mm
- Infrared ray
- 1 presence, 4 transmitting,16 light spot, 3 motion,
- Self-learning time
- 10 seconds
- Operation LED light
- Standby state green light on, motion signa
- Temperature range
- -40℃ ~ 60℃
- Detection wide
- 800-1600mm adjustable
- Detection depth
- 800-1500mm adjustable
- Output holding time
- Presence 500ms, motion 2s
- Response time
- ≤100ms
Motion & Presence Infrared Sensor
MOTION & PRESENCE I ARW-254 This sensor is integrated with activation and safety presence, which is used for the opening and safety protection function of the common sliding door.
Activation and presence detection fuction are performed by infrared induction technology, can effectively and accurately control the inductive range.
Infrared safety presence adopt background self-learning function, automatically learn background state when power on, and smart automatically adapt to various occasions.
Automatic and real-time accurate compensation for time drift of the background, self-correction due to changes in various light and dark, and sunlight, etc.) to ensure the long-term and reliable operation of the detector.
