Safety Sensor

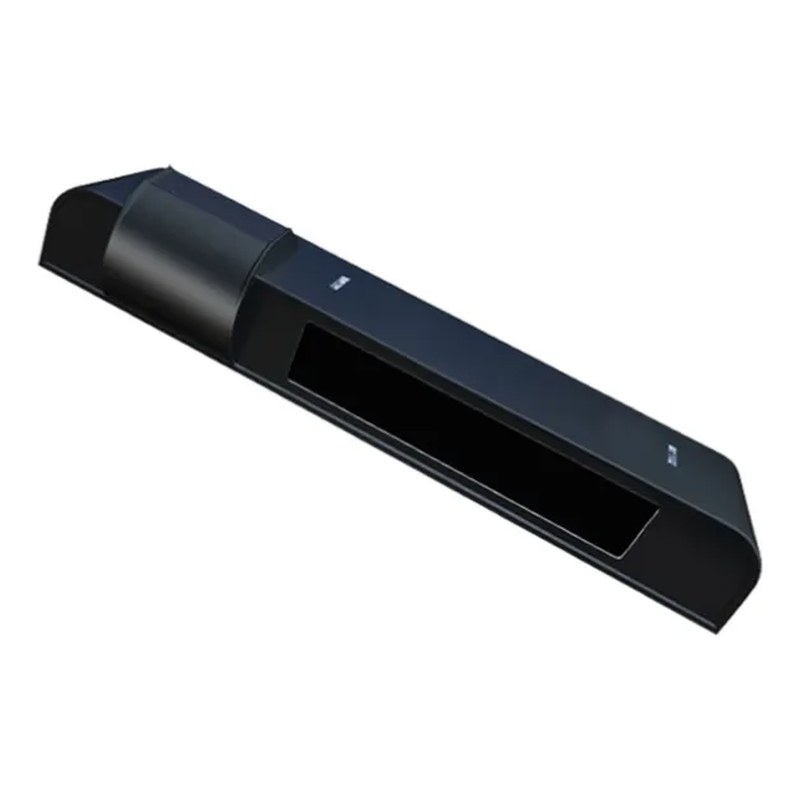

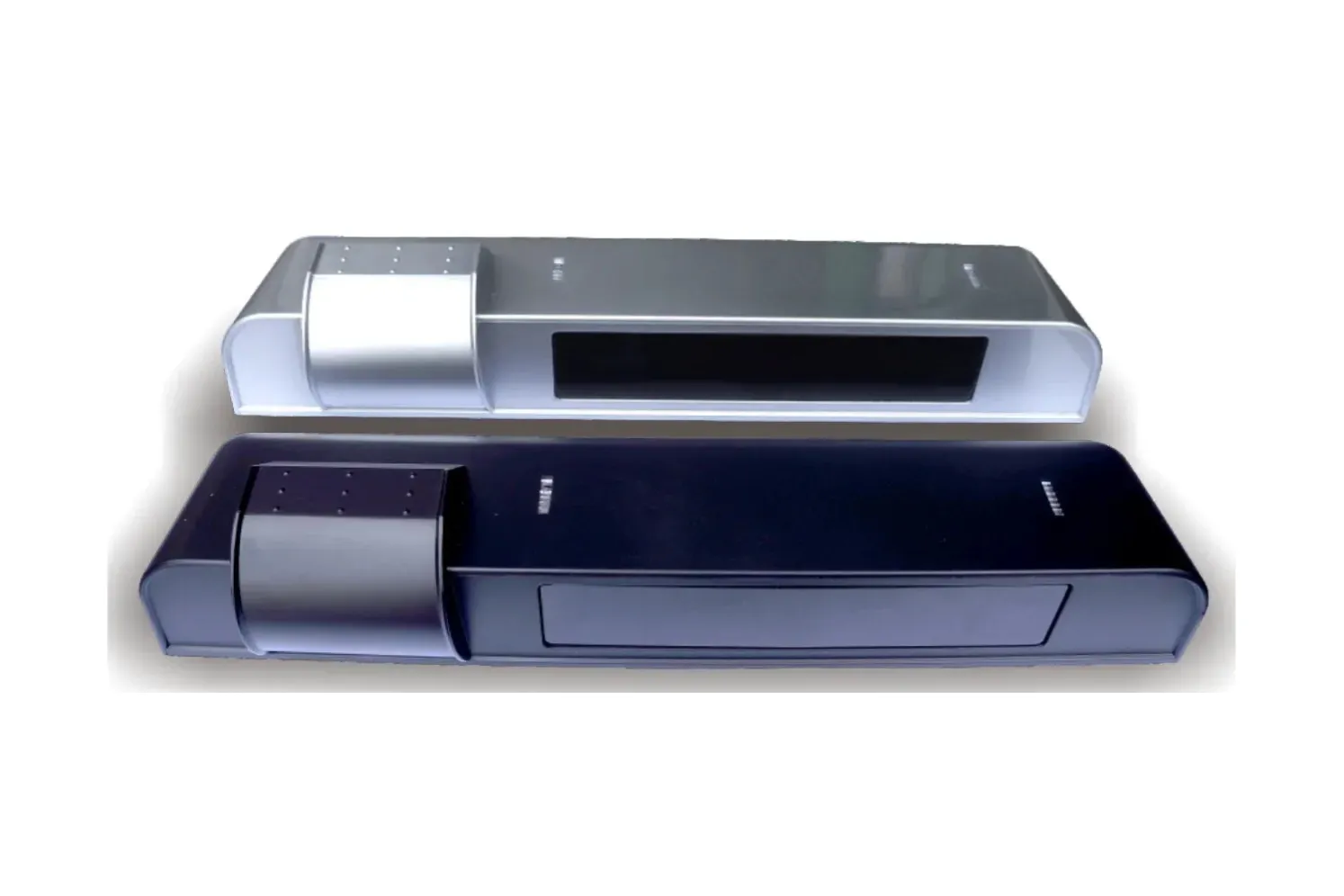

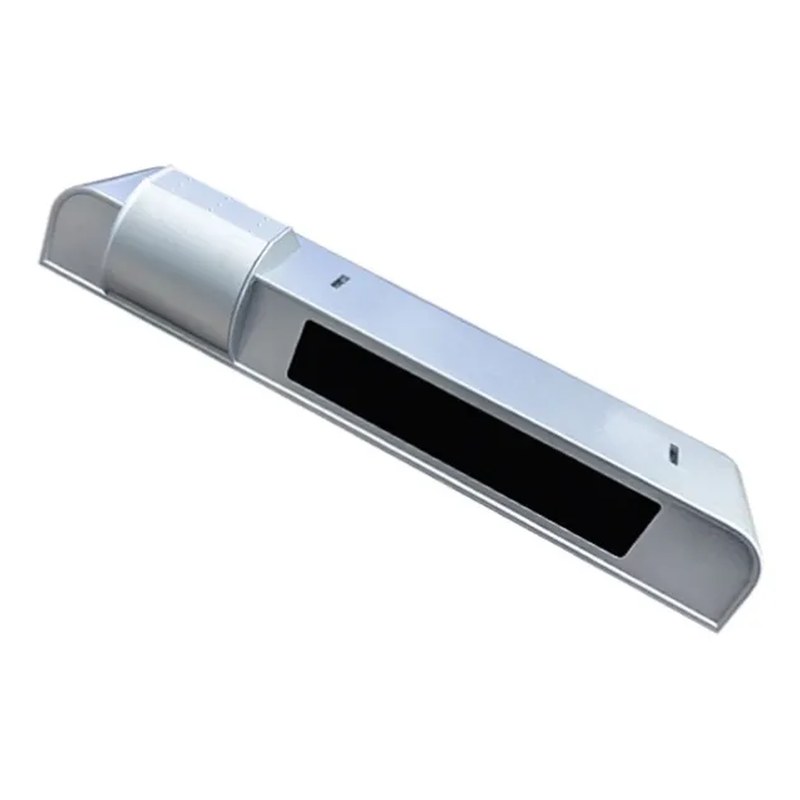

ARW-235 MOTION&PRESENCE SENSOR
ARW-235 Motion&presence sensor. This sensor is integrated with activation and safety presence, which is used for the opening.
Specifications
- Working voltage
- AC/DC 12V(-5%)~24V(+10%)
- Installation height
- 2500 mm
- Detecting area
- 1600(W) x 800(D) mm
- Transmitting frequency
- 24.125 GHz
- Transmitting voltage
- <20dbm E1RP
- Dynamic current
- 130mA
- Static current
- 65mA
- External dimension
- 260.3(L) x 53.4(W) x 44(H)mm
- Cable length
- 2.5 meters
- Self-learning time
- 10 seconds
- Infrared ray type
- Infrared modulated ray
Motion&Presence Sensor
Product application
MOTION&PRESENCE S ARW-235 This sensor is integrated with activation and safety presence, which is used for the opening and safety protection function of the common sliding door, folding door and curved door.
Activation fuction is performed by microwave technology, while the presence detection is performed using the active infrared curtain.
NOTE: EN16005 technology standard version can be available, 235E.
Overall characteristics
Three-dimensional safety curtain can protect the users from being clamped or hitted, no extra safety electric beam eye.
The active infrared technology with anti-interference self- adjustment capability achieves optimum operation and high safety.
Infrared safety presence adopt background self-learning function, automatically learn background state when power on, and smart automatically adapt to various occasions.
Automatic and real-time accurate compensation for time drift of the background, self- correction due to changes in various external factors (such as: vibration, deformation, gradual shift, light and dark, and sunlight, etc.) to ensure the long-term and reliable operation of the detector.
