Motion Sensor

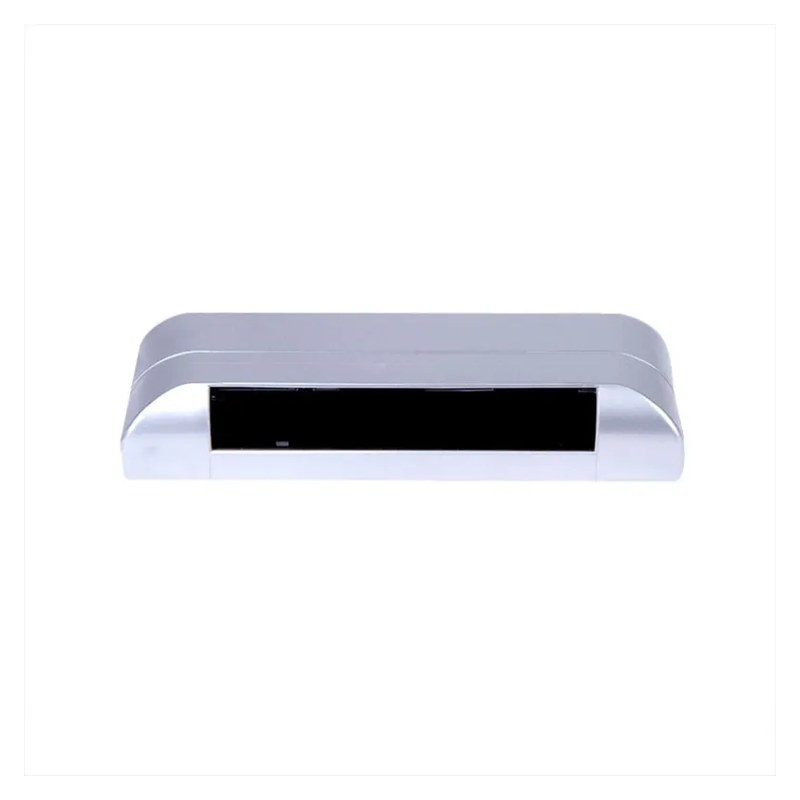

ARW-204E INFRARED SENSOR
ARW-204E Infrared sensor. The product is active infrared sensor. Using imported infrared transceiver electron optical tube.
Specifications
- Ray type
- 6 emit rays and 6 receive rays
- Function type
- Detect moving objects, sensing activative
- Max. install height
- 3000 mm
- Sensitivity adjusting
- Yes, by adjusting knob
- Power supply
- AC/DC 12-36V±5%
- Active current
- 110mA (DC 12V power)
- Static current
- 68mA (DC 12V power)
- Detective area
- 1500(D)x2000(W)mm
- External dimension
- 221(L)x74(W)x35(H)mm
Infrared Sensor
ARW-204E The product is active infrared sensor.
Using imported infrared transceiver electron optical tube, inductive range is adjustable with flexible and convenient, accurate distance control.
Strong anti-interferece ability, high sensitivity and error action is very low, can be convenient for all kinds of automatic doors for induction matching, especially suitable for the door space is narrow or the street human walking frequent occasions.
High-grade appearance, international structure technology, precision optical lens, structure adjustment device design advanced.
With advance background analysis technology, it can automatically study and analyze the scenes in the initial state, and lock the background information.
Special door width range setting switch, through the combination of dial code switch, to achieve a wider induction range or a narrow induction range of free choice.
Can be adjusted the main body and side range, and then with the sensitivity selection set switch, can achieve the far and near induction distance accurate adjustment.
